تفاصيل المنتج:
|
| أبعاد: | الطول 2500 × العرض 650 × الارتفاع 1400 | كمية منطقة التدفئة: | العلوي4/أسفل4 |
|---|---|---|---|
| منطقة التدفئة: | 1400*300 ملم | تسخين الوقت: | حوالي 20 دقيقة |
| الوزن الصافي: | 220 كجم | طريقة التسليم: | نقل شبكة |
| إبراز: | 220kg Net Weight SMT Reflow Oven,20 mins Heating Up Time Hot Air Soldering Machine,380V Power Supply PCB Assembly Machine,20 mins Heating Up Time Hot Air Soldering Machine,380V Power Supply PCB Assembly Machine |
||

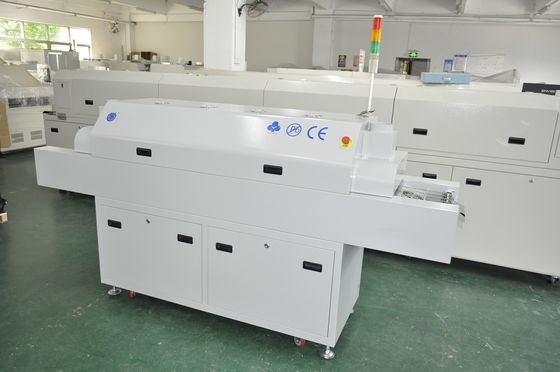

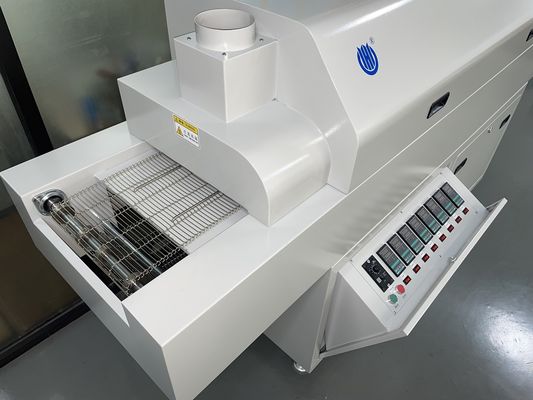

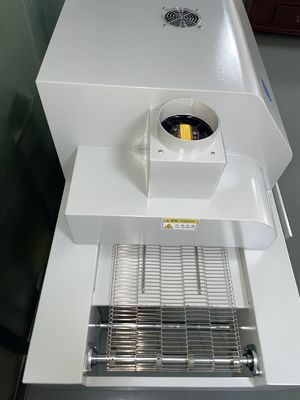

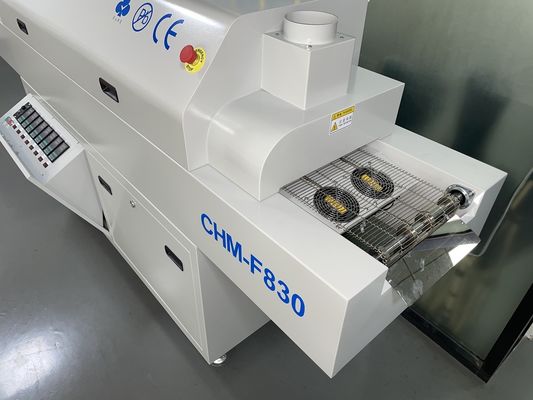

Vertical SMT Reflow Oven 8 Temperature Zones 1400*300mm Hot air Soldering Machine - Lead-free
| Model No. | CHM-F830 |
|---|---|
| Number of Heating Zones | Up 4 + Bottom 4 |
| Length of Heating Zones | 1400mm |
| Heating Pattern | Up: Hot air; Bottom: Hot air (Forced convection of hot air, Taiwan SAYA motor) |
| Number of Cooling Zones | 2 Plasma DC Fan |
| Max. Width Of PCB | 300mm (stainless steel mesh belt) |
| Conveyor Direction | L->R |
| Conveyor Height | 880±20mm |
| Transport Mode | Mesh Belt |
| Conveyor Speed Range | 0-2200mm/min |
| Power Supply | 5 Wire, 3 Phase, 380V 50/60Hz |
| Start Power | 10KW |
| Power Consumption | Approx 2.5KW |
| Warming Time | Approx 15-20 mins |
| Temp. Setting Range | Room Temp.- 380℃ |
| Temperature Control Method | Instrument-controlled |
| Temperature Difference Between Adjacent Zone | 70 ℃, can correspond to the highest standards of lead-free process. |
| Temperature Control Precision | ±2℃ |
| Temperature Deviation on PCB | ±2℃ |
| Abnormal Alarm | Temperature abnormal (too high or too low after the constant temperature keeping) |
| Open Way | Manual |
| Dimension(L*W*H)mm | 2500*650*1400MM |
| Weight | Approx220Kg |
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
