تفاصيل المنتج:
|
| أبعاد: | الطول 3500 × العرض 720 × الارتفاع 1400 | كمية منطقة التدفئة: | أعلى/أسفل6 |
|---|---|---|---|
| منطقة التدفئة: | 2200*350 مم | تسخين الوقت: | حوالي 15-20 دقيقة |
| الوزن الصافي: | 400 كجم | يكتب: | خالية من الرصاص |
| إبراز: | 6 Heating Zones SMT Reflow Oven,2200*350mm Heating Area Reflow Soldering Machine,Modular Design Lead-free Reflow Oven,2200*350mm Heating Area Reflow Soldering Machine,Modular Design Lead-free Reflow Oven |
||
| Parameter | Specification |
|---|---|

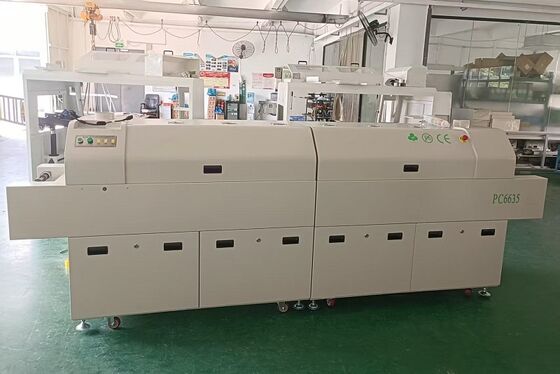

| Model | PC6635 (PC, up6+down6, 350mm width) |
| Heating Zones | Up6 + Down6 |
| Heating Length | 2200mm |
| Cooling Zones | 2 |
| Max PCB Width | Mesh width 350mm, Rail adjustable 250mm |
| Conveyor Direction | L→R (R→L optional) |
| Conveyor Height | Mesh 880±20mm |
| Transport System | Mesh conveyor + Rail conveyor |
| Conveyor Speed | 0-2000mm/min |
| Power Supply | 5 wires 380V 50/60Hz |
| Startup Power | 24KW |
| Operating Power Consumption | Approx. 5-6KW |
| Control System | Industrial PC + monitor |
| Warm-up Time | Around 20 minutes |
| Temperature Range | Room Temperature - 350℃ |
| Temperature Control | Industrial PC + Temperature module control, SSR Driver |
| Temperature Control Precision | ±1℃ |
| Temperature Distribution Error | ±3℃ |
| Trouble Alarms | Abnormal temperature (ultra-high or ultra-low temperature after constant temperature) |
| Board Drop Alarm | Optional |
| Net Weight | Approx. 400kg |
| Dimensions (L×W×H) | 3600×700×1430mm |
