Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines

Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines
Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines

صورة كبيرة :  Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: Charmhigh
إصدار الشهادات: CE
رقم الموديل: CHM-780 ، CHM-850 ، CHM-950
الوثيقة: SMT reel tape cutter.pdf
شروط الدفع والشحن:
الحد الأدنى لكمية: 1
الأسعار: $1380 free shipping
تفاصيل التغليف: صندوق من الخشب الرقائقي
وقت التسليم: 5-7 أيام
شروط الدفع: باي بال، تي / تي
القدرة على العرض: 200 شهريا

Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines

وصف
الجهد االكهربى: 220 فولت/110 فولت ل: آلة اختيار مختلفة ومكان

Automatic SMT Tape Cutter CHM-950 for Hanwha Pick and Place Machines
Product Overview

CHM-950 Automatic Belt Cutting Machine SMT Tape Cutter for Samsung Hanwha Pick & Place Machine

Direct buy online from our online store:
https://www.charmhigh-smt.com/sale-446159-free-shipping-automatic-smt-reel-tape-cutter-chm-780-hand-free-tape-cutting-machine-220v-for-smt-pick-and-place-machine.htm


CHM-950 automatic belt cutting machine is a professional SMT tape cutter designed specifically for Hanwha pick and place machines. With a length of 950mm (customizable according to your machine requirements), this SMT tape cutter significantly improves production efficiency while maintaining a clean workspace.

Product Specifications
Brand Name CHM / Customizable
Model Number CHM-950
Type SMT Tape Cutter
Application SMT Feeder Belt Cutting
Compatible Brand Hanwha, Samsung
Condition New
Place of Origin China
Warranty 1 Year
After-sales Service Online technical support
Application Fields

SMT Chip Mounter, SMT SMD LED pick and place machine, non-standard automation equipment, etc. Compatible with various brands including Yamaha, Juki, Charmhigh pick and place machines. Custom lengths available for specific machine requirements.

Key Features
  • Blade and cutter made of high-strength steel through heat treatment and fine grinding for durability and sharp edges
  • Reduction motor drive system with high strength, no jamming, and low noise operation
  • Multiple sensors for accurate stroke control and waste box removal detection
  • Self-developed control circuit for stable and reliable performance
Technical Specifications
  • Model Options: CHM-780 / CHM-850 / CHM-950 (different lengths)
  • Dimensions: 780mm / 850mm / 950mm (length) × 290mm × 450mm (including wheels' height)
  • Net Weight: 30kg-35kg
  • Effective Cutting Length: 470mm-640mm
  • Voltage: 220V; 50Hz; Power: 100W
  • Control Method: Switch ON/OFF, speed control by frequency, safety protection function, automatic shutdown when removing waste box
Product Images

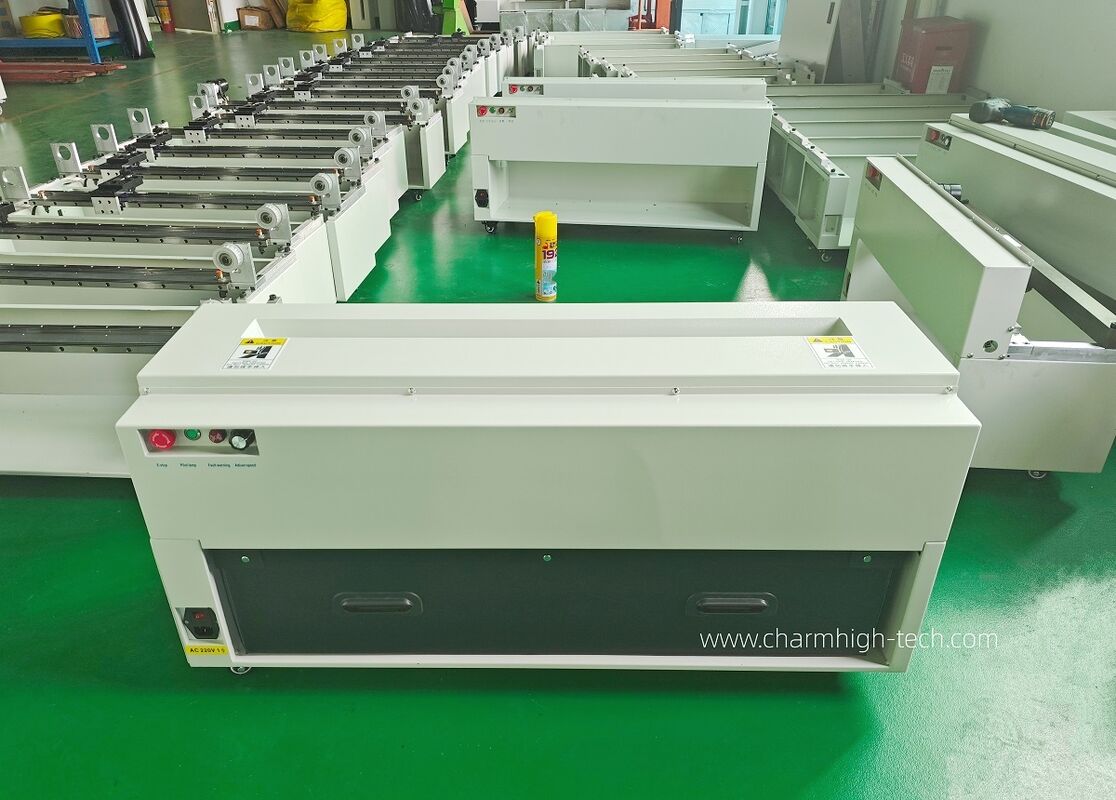

CHM-950 Automatic SMT Tape Cutter front view
CHM-950 Automatic SMT Tape Cutter side view

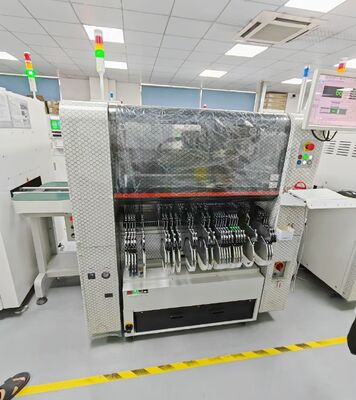

CHM-950 working with Samsung Hanwha SMT pick and place machine

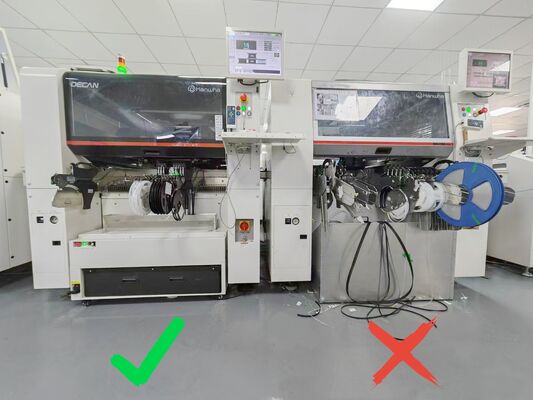

CHM-950 integrated with pick and place machine setup

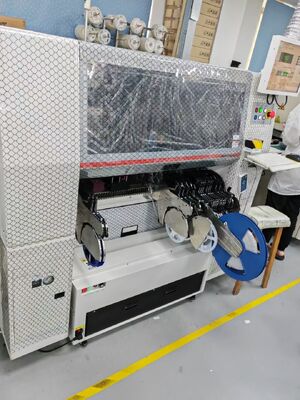

CHM-950 installed on various pick and place machine brands
CHM-950 secure packaging for shipping
Warranty & Support

The complete machine has a warranty period of 1 year from purchase date with lifetime service support. We provide reliable factory-direct spare parts, online Q&A, troubleshooting support, and technical advice services. Each machine is 100% tested before shipment.

Technical Support

Kimi's WhatsApp & Mobile: +86 135 106 75756
Email: kimi@charmhigh-tech.com
YouTube Channel: @KimiLiuCharmhigh

For additional information and videos, please contact us by email. We respond promptly to all inquiries.
