تفاصيل المنتج:
|
| Tape feeder: | 58pcs (left 29 + right 29) width 8/12/16/24mm | PCB max size: | 345mm(L)×355mm(W) |
|---|---|---|---|
| Speed: | 3000 CPH (with vision camera) | Head: | 2 heads |
| Max height of component: | 5mm highest component | System: | Embedded Linux system |
| Vibration feeder: | for tube IC | Demension: | 1320mm(L)×705mm(W)×335mm(H) |
| إبراز: | benchtop SMT pick and place machine,SMT pick and place machine with 58 feeders,SMT pick and place machine with vision cameras,SMT pick and place machine with 58 feeders,SMT pick and place machine with vision cameras |
||

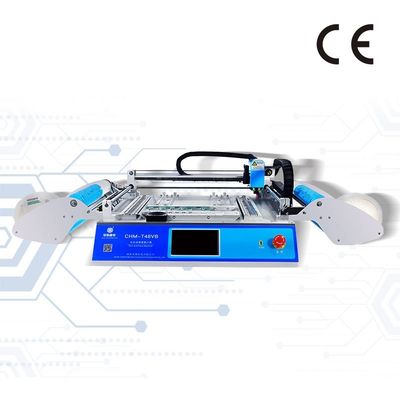

The CHMT48VB is an upgraded version of the CHMT48VA, featuring dual side feeders with a total of 58 positions (29 left + 29 right). This all-in-one machine requires no additional parts and is ready for immediate use upon delivery.

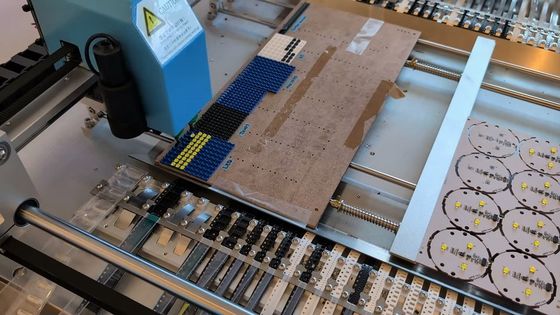

This benchtop SMT pick and place machine is ideal for R&D, small batch production, prototyping, education, and startup businesses. It supports a wide range of components from 0402 size up to 22×22mm ICs.
| Model | CHM-T48VB |
|---|---|
| PCB Area | 10mm × 10mm - 355mm × 355mm |
| X/Y Axis Travel | 420 × 460mm |
| Placement Heads | 2 |
| Feeders | 58 total (44×8mm, 8×12mm, 4×16mm, 2×24mm, 14×IC stack) |
| Vision System | Dual cameras (up & down) |
| Mounting Speed | 5000 CPH (vision off), 3000 CPH (vision on) |
| Mounting Precision | ±0.025mm |

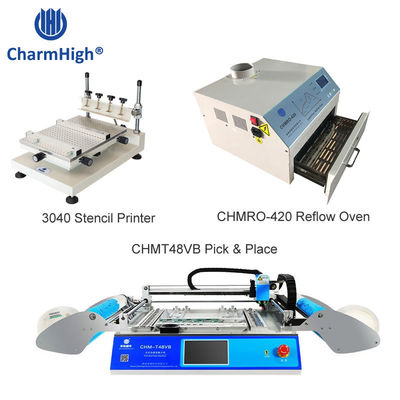

High precision stencil printer 3040 + CHMT48VB pick and place machine + Reflow oven 420:
CHMT48VB: Standard Package
CHMT48VB with Vibration Feeder: Complete Package
The complete machine comes with a 1-year warranty from purchase date and lifetime service support.

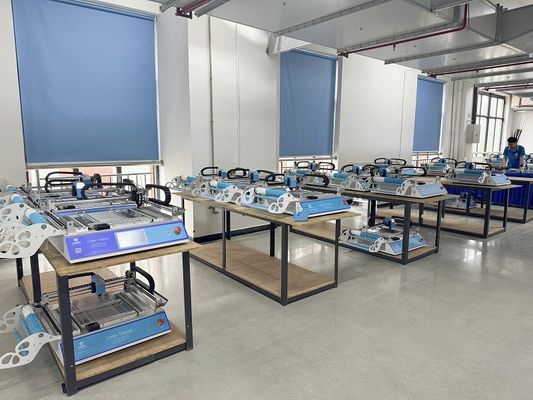

Each machine is 100% tested before shipment.
Technical Support: Kimi Liu
WhatsApp/Mobile: +86 135 106 75756
Email: kimi@charmhigh-tech.com
Follow us on YouTube: www.youtube.com/kimiLiuCharmhigh
اتصل شخص: Kimi Liu
الهاتف :: +86 135 106 75756
الفاكس: 86-131-0721-9945
